离体组织浴系统

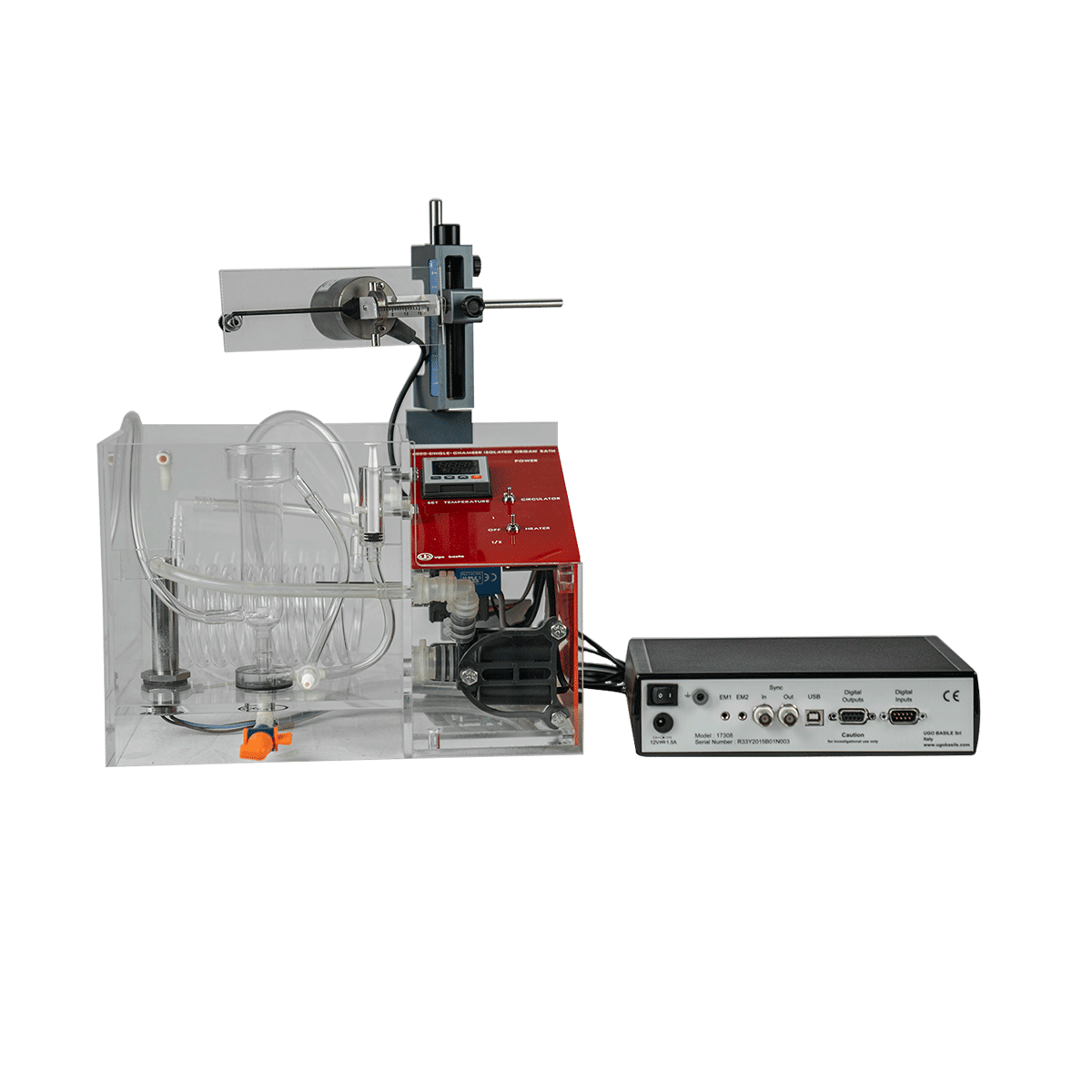

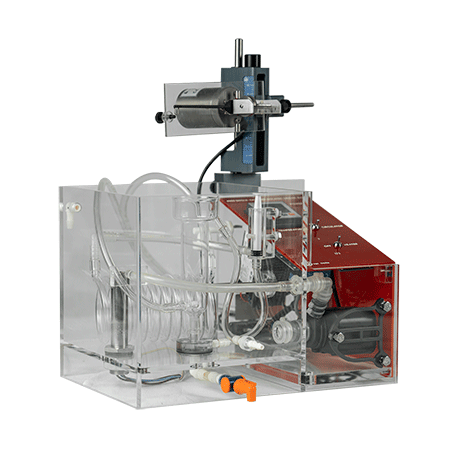

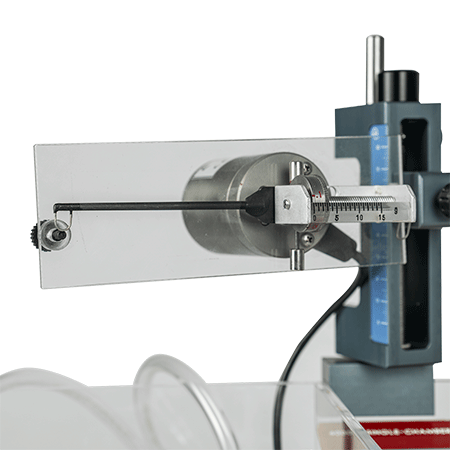

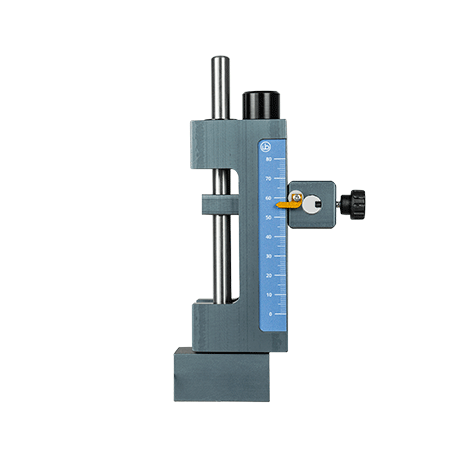

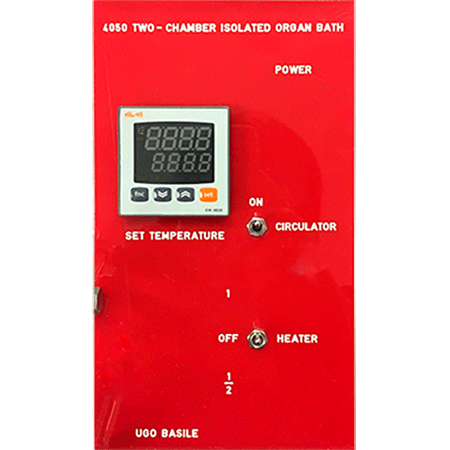

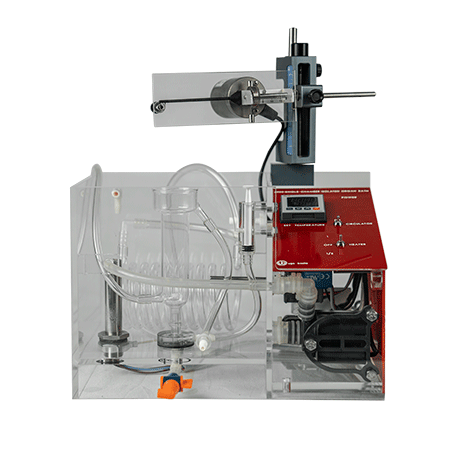

Compact, cost effective, easy to use, turnkey solution with heating, circulation and transducer mount in each bath. Available in 1, 2, or 4 chambers configurations with control box that enables pre-set temperature from 25 to 45°C in 0.1°C steps. A precise solid state thermostat maintains the temperature within the limits of +/- 0.1º C on all models.

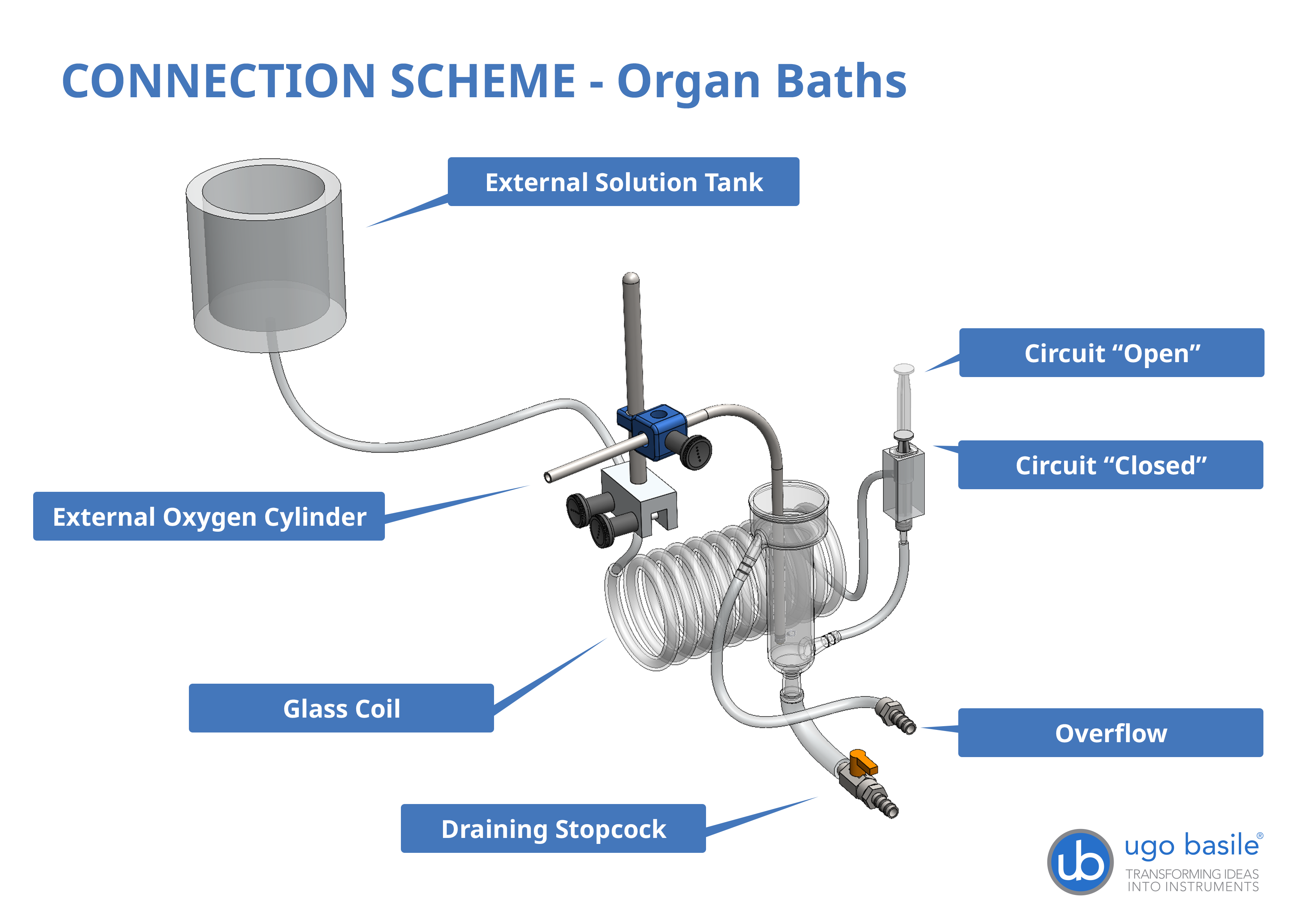

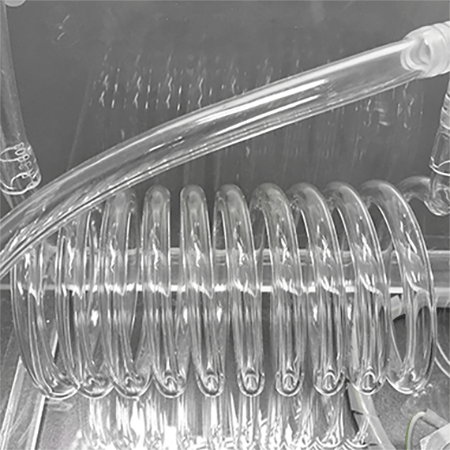

Tissue washing without exposure to air: wash or test solution enters chamber after passing through the temperature equilibrating coils and the syringe valve. The tissue in the chamber is washed by flushing the chamber through an overflow drain tube, to avoid exposing the tissue to the air.

Water stirring is accomplished by a water jet delivered through a noiseless vibration-free centrifugal pump. A stainless steel heating element is mounted on the Perspex tank floor. An additional HV Stimulator can be added to the Isolated Organ Bath.
